The Repair: Spa Heater not Starting#
We have a Raypak E3T Single Phase (60 Hz) heater. When I tried firing up the ole system this spring, everything appeared to be on, but no hot water. Everything appears to be on, display shows the designated temperature on the thermostat. There are a couple of things that you typically validate (like the flow rate is high enough); however, all of those things checked out. When I was going through their manual, another thing to check was if the high limit switch was tripped. In the manual, it sounds as though this is some visible thing - but I couldn’t find it on my heater. When looking into it further, I noticed my model was an older generation, and the new ones have a button accessible on the shell of the heater.

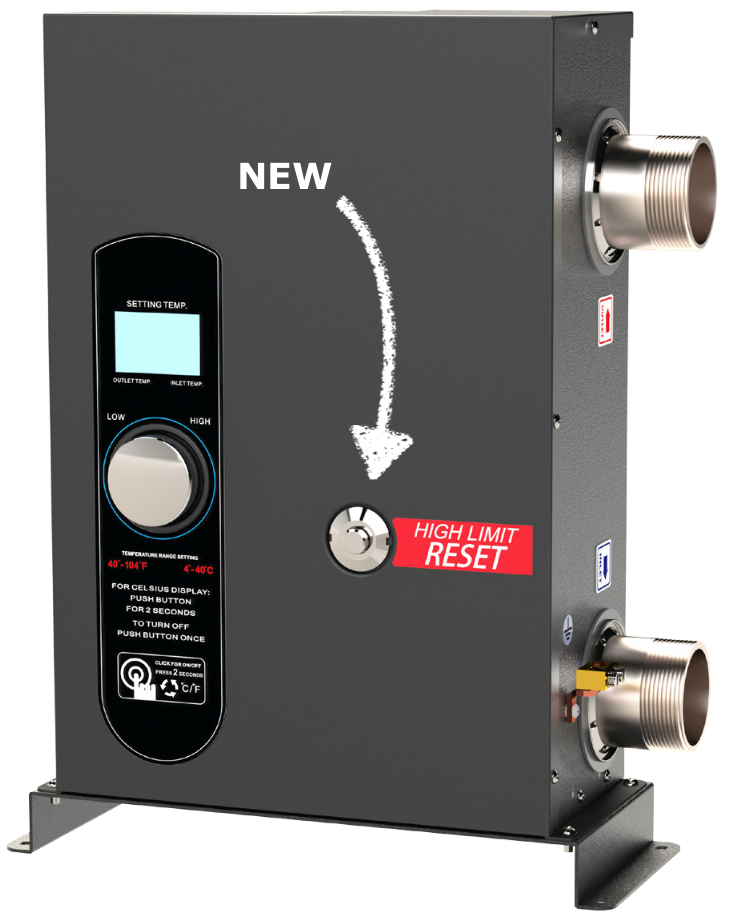

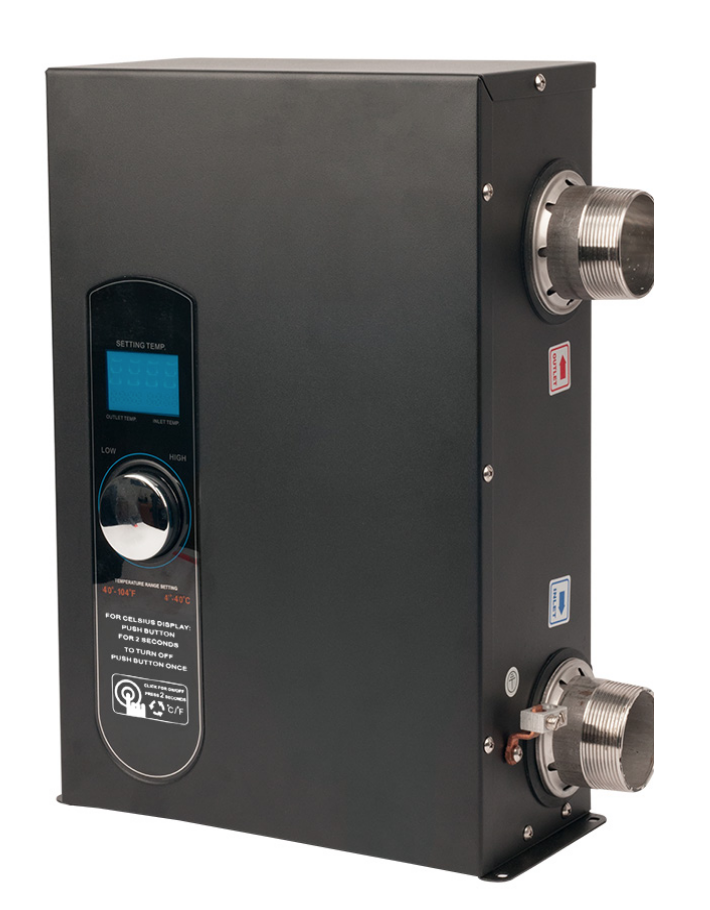

| Old | New |
|---|---|
 |  |
However, if you have a model that is pre-2024, the switch is inside the housing. From the parts and wiring diagrams, you will see there are two switches.

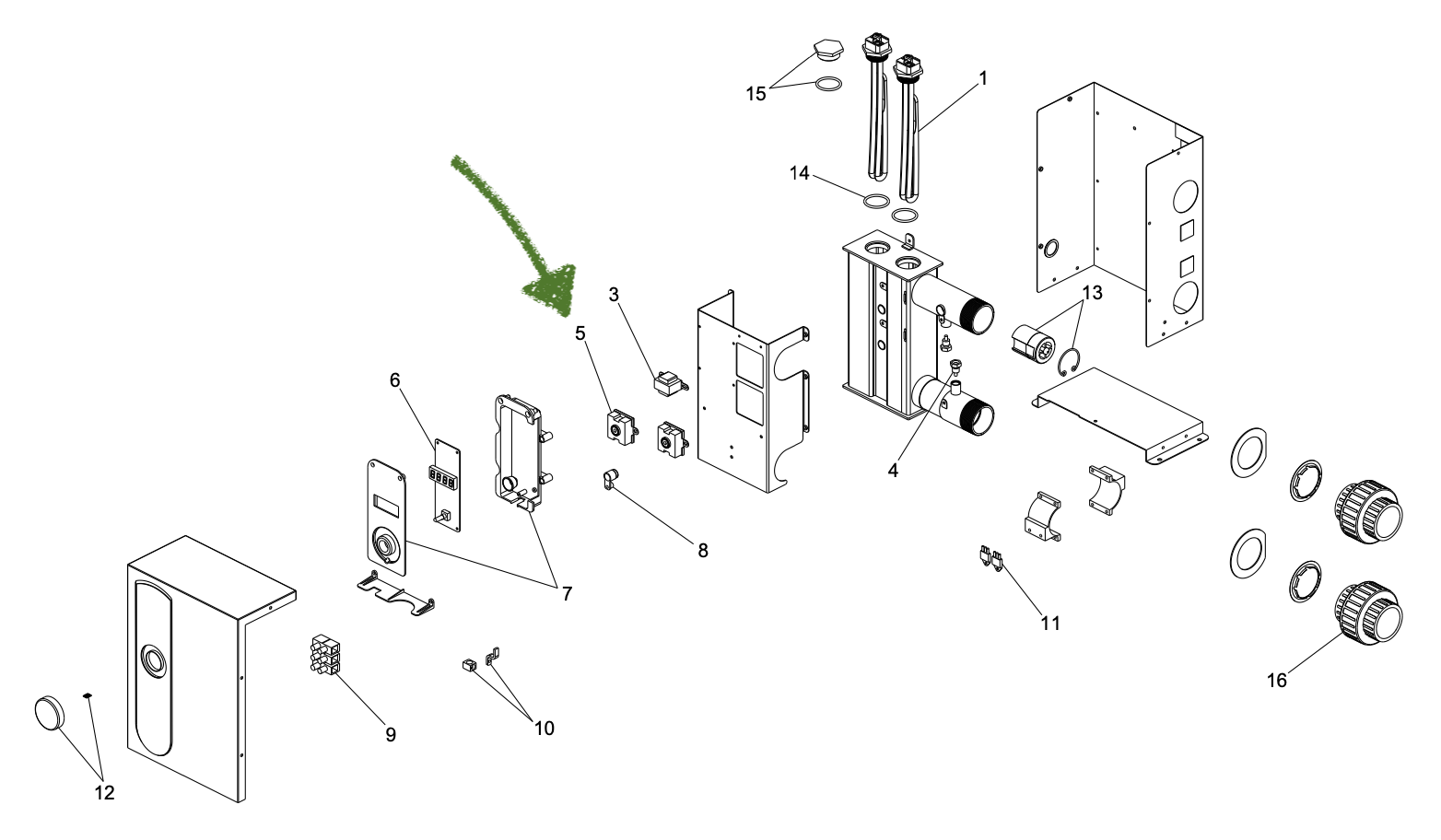

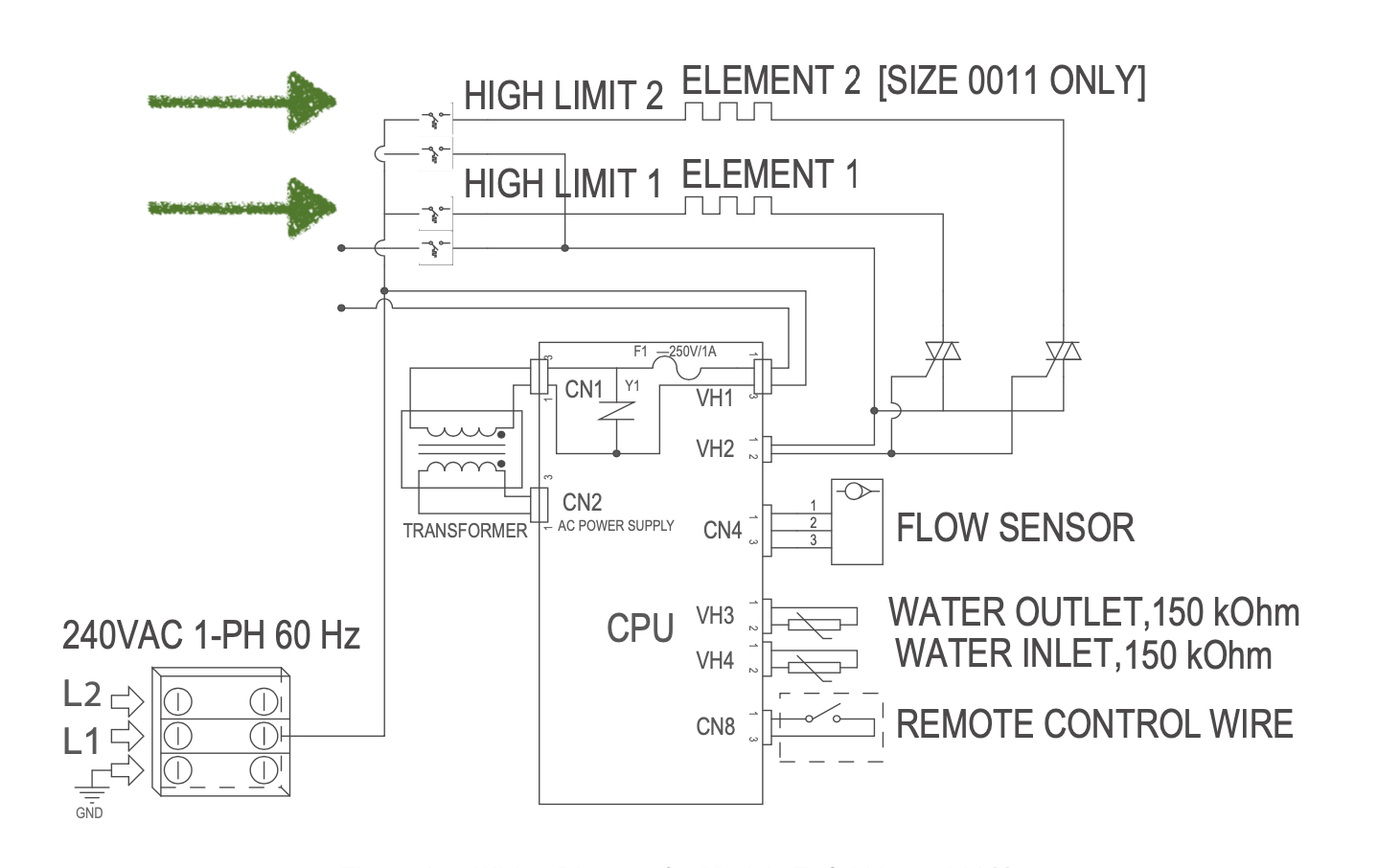

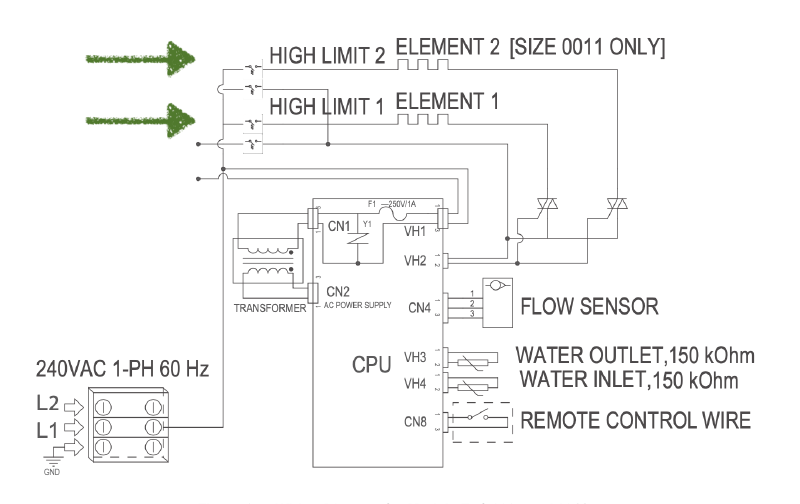

| Parts | Wiring |
|---|---|
 |  |

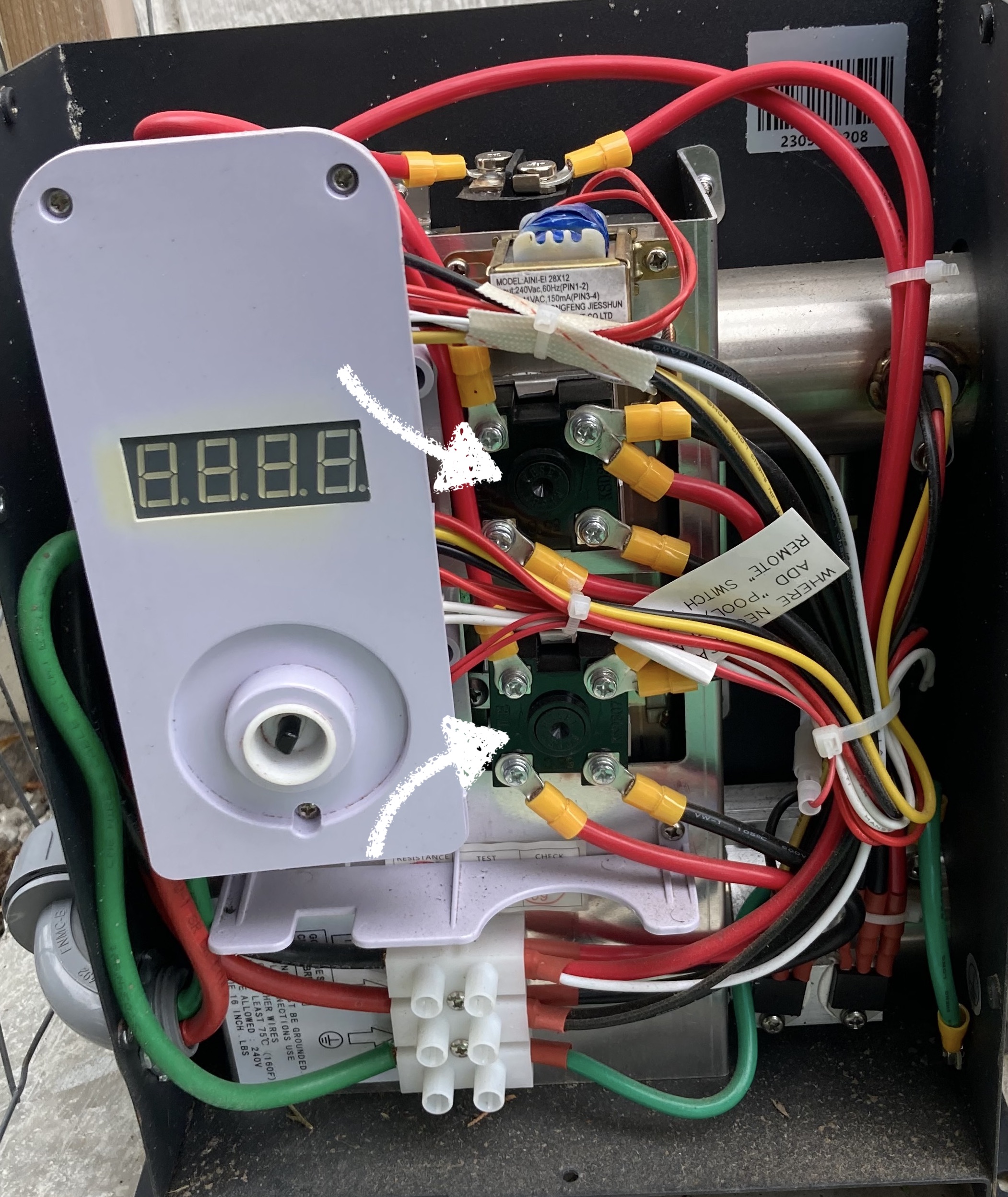

To check these, shut the power off on your electrical panel that is feeding the heater. Remove all the screws holding the housing, and open it up. Inside, you will see the reset switches.
You can then use the point of a #2 Philips screwdriver to press in the middle of the switch to reset it. Put the cover back on, flip on the power from the panel, and hopefully enjoy some hot water! One thing that I noticed was the sounds of the heating element heating up the water, which I couldn’t hear before.
Conclusion#
If for the odd reason, you have had this same issue, hopefully this helps! If anything, always do a deeper dive with a manual or installation guide. Often these can share many lower-level details you didn’t think you needed (ex. wiring diagram) but can be helpful when there is no other direct answer.
